combinations for greater flexibility. The circuit design adopts SiC (silicon carbide) components to achieve high power density characteristics which can generate 15 kW of high output and keep the compact size at just 3U height.
PHU’s wide voltage and current range, along with its high-power characteristics, can cover a broader range of testing applications such as photovoltaic systems, electric vehicles (EVs), and automotive electronics, etc. The launch of PHU multi-range high power DC source enhances the completeness of the DC power supply product line of GW Instek, and provides customers with more comprehensive and integrated solutions.

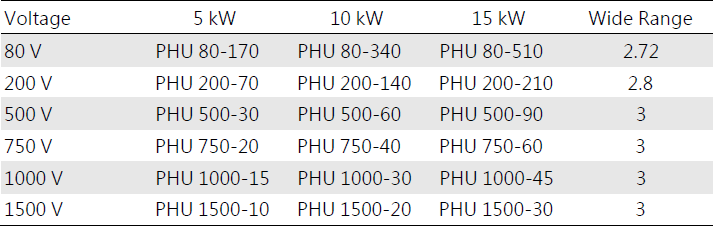

There are a total of 18 models, consisting of 3 power capacities (5 kW/10 kW/15 kW) and 6 voltages (80 V/200 V/500 V/750 V/1000 V/1500 V) to meet all customer needs.
Key features:
-
-
- • Voltage output: 80 V/ 200 V/ 500 V/ 750 V/ 1000 V / 1500 V
- • Power output: 5 kW/ 10 kW/ 15 kW
- • Maximum current output: 510 A
- • C.C/ C.V priority mode
- • Adjustable voltage/current rise and fall time
- • AWS (Advanced Web Control)>
- • APC (Adaptive Parallel Connection)
- • Parallel connection (maximum 10 units)
- • High efficiency and high-power density
-
